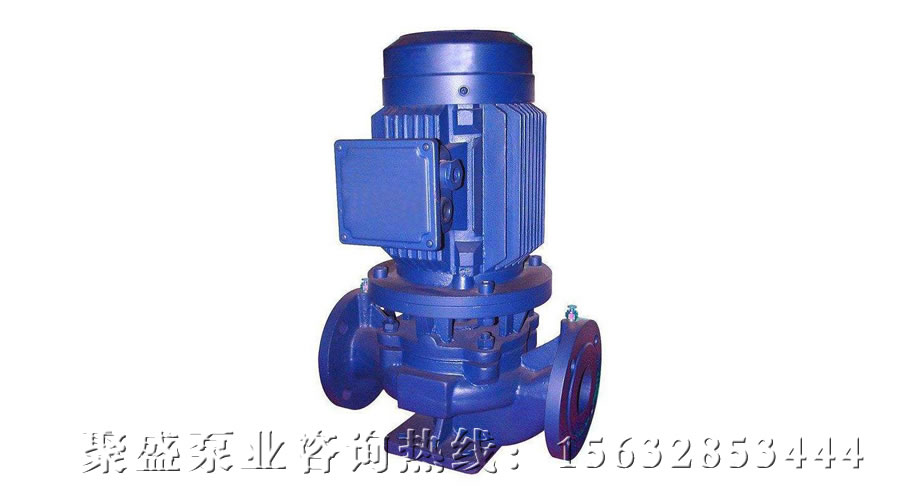

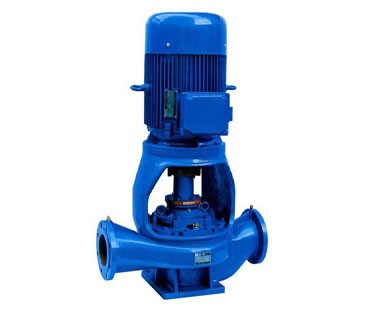

SG Pipeline Booster Pump

产品规格：SG Pipeline Booster Pump
订购电话：166-0318-1010
发布时间：2019-09-10 09:37:44
产品说明：
The SG type pipeline booster pump is designed for pipeline pressurized transportation. It has great advantages over the currently used horizontal centrifugal pumps. Since it adopts mechanical seals and the impeller is directly installed on the motor

产品描述

The SG type pipeline booster pump is designed for pipeline pressurized transportation. It has great advantages over the currently used horizontal centrifugal pumps. Since it adopts mechanical seals and the impeller is directly installed on the motor spindle, it features high efficiency, low power consumption, compact structure, small size, light weight, and convenient installation and maintenance. It can also be used in parallel or series according to the requirements of head and flow.

Main applications of the SG type pipeline pump:

The SG series ordinary pipeline pumps are suitable for pressurized water supply in high - rise buildings, garden sprinkler irrigation, water supply to cooling towers, long - distance water transportation, air - conditioning, refrigeration flushing, and cold and hot water circulation pressurization in bathrooms, etc. The operating temperature should be below 80°C.
The SGR series hot water pipeline pumps are suitable for high - temperature hot water pressurized circulation in industries such as heating and boilers. The operating temperature should be below 150°C.
The SGP series corrosion - resistant pipeline pumps are suitable for transporting corrosive media in the technological processes of industries such as food, pharmaceuticals, winemaking, and chemicals. The operating temperature should be below 100°C.
The SGB series explosion - proof pipeline pumps are suitable for transporting non - corrosive liquids in other industrial places where there are explosive mixtures with methane, in fixed equipment Class I in coal mines, and in factories of Class IIA and IIB, with temperature groups T1, T2, T3, and T4. The operating temperature should be below 80°C.
The SGPB series corrosion - resistant and explosion - proof pipeline pumps are suitable for transporting corrosive liquids in industries such as chemicals, pharmaceuticals, petroleum, food, and defense. They are applicable in other industrial places where there are explosive mixtures with methane, in fixed equipment Class I in coal mines, and in factories of Class IIA and IIB, with temperature groups T1, T2, T3, and T4. The operating temperature should be below 150°C.

Performance Parameters of SG Type Pipeline Pump:

型号	口径 mm	流量 (m3/ h)	扬程 mm	效率 %	电机功率 Kw	电压 v	转速 (r/min)
15SG0.6-5	15	0.6	5	60	0.04	220	2800
15SG1.8-10	15	1.8	10	60	0.12	220	2800
20SG2-8	20	2	8	60	0.12	220	2800
20SG3-14	20	3	14	60	0.25	220	2800
20SG3-30	20	3	30	60	0.75	220	2800
25SG2.5-15	25	2.5	15	60	0.25	220	2800
25SG4-20	25	4	20	60	0.75	220	2800
25SG3-30	25	3	30	60	0.75	220	2800
32SG5-20	32	5	20	60	0.75	220	2800
40SG5-8	40	5	8	60	0.75	220	2800
40SG6-20	40	6	20	60	0.75	220	2800
50SG10-7.5	50	10	7.5	55	0.75	220	2800
50SG10-15	50	10	15	60	0.75	220	2800
25SG4-20	25	4	20	60	0.75	380	2800
25SG3-30	25	3	30	60	0.75	380	2800
25SG6.5-30	25	6.5	30	60	1.5	380	2800
25SG10-50	25	10	50	60	4	380	2800
32SG5-20	32	5	20	60	0.75	380	2800
32SG8-30	32	8	30	65	1.5	380	2800
32SG15-40	32	15	40	60	4	380	2800
32SG12-50	32	12	50	60	4	380	2800
32SG14-80	32	14	80	60	0.75	380	2800
40SG6-20	40	6	20	60	0.75	380	2800
40SG9-30	40	9	30	65	1.5	380	2800
40SG18-40	40	18	40	60	4	380	2800
40SG15-50	40	15	50	70	4	380	2800
40SG18-65	40	18	65	65	7.5	380	2800
40SG15-80	40	15	80	65	7.5	380	2800
50SG10-7.5	50	10	7.5	55	0.75	380	2800
50SG10-15	50	10	15	60	0.75	380	2800
50SG12-25	50	12	25	65	1.5	380	2800
50SG15-30	50	15	30	65	2.2	380	2800
50SG18-40	50	18	40	65	4	380	2800
50SG16-50	50	16	50	65	4	380	2800
50SG20-65	50	20	65	65	7.5	380	2800
50SG25-80	50	25	80	65	15	380	2800
50SG30-100	50	30	100	65	22	380	2800
65SG30-15	65	30	15	65	2.2	380	2800
65SG30-27	65	30	27	65	4	380	2800
65SG40-40	65	40	40	65	7.5	380	2800
65SG30-50	65	30	50	65	7.5	380	2800
65SG50-65	65	50	65	65	15	380	2800
65SG40-80	65	40	80	65	18.5	380	2800
65SG45-100	65	45	100	65	22	380	2800
80SG35-20	80	35	20	65	4	380	2800
80SG50-30	80	50	30	65	7.5	380	2800
80SG70-40	80	70	40	65	15	380	2800
80SG60-50	80	60	50	65	15	380	2800
80SG80-65	80	80	65	65	22	380	2800
80SG70-80	80	70	80	65	22	380	2800
80SG55-100	80	55	100	65	30	380	2800
100SG40-18	100	40	18	65	4	380	2800
100SG50-30	100	50	30	65	7.5	380	2800
100SG70-40	100	70	40	65	15	380	2800
100SG60-50	100	60	50	70	15	380	2800
100SG80-65	100	80	65	70	22	380	2800
100SG75-78	100	75	78	70	22	380	2800
100SG100-60	100	100	60	70	30	380	2800
100SG65-100	100	65	100	70	30	380	2850
125SG80-18	125	80	18	70	7.5	380	1450
150SG100-15	150	100	15	70	7.5	380	1450
150SG140-26	150	140	26	70	18.5	380	1450
150SG160-40	150	160	40	70	30	380	2800
150SG200-50	150	200	50	70	37	380	2800
150SG220-65	150	170	65	70	55.5	380	2800
150SG170-180	150	200	180	70	55.5	380	2800
200SG200-20	200	200	20	70	18.5	380	1450
200SG200-35	200	200	35	70	30	380	2800
200SG200-44	200	200	44	70	37	380	2800
200SG240-60	200	240	60	70	55.5	380	2800
200SG200-75	200	200	75	70	55.5	380	2800
250SG380-22	250	380	22	70	37	380	1450
250SG500-30	250	500	30	70	55	380	1450
300SG400-20	300	400	20	70	37	380	1450
300SG500-30	300	500	30	70	55	380	1450
350SG800-20	350	800	20	70	55	380	1450
400SG1000-18	400	1000	18	70	55	380	1450
500SG1200-15	500	1200	15	70	55	380	1450
500SG800-20	500	800	20	70	55	380	1450
