The ZJL type submerged slurry pump is a vertical centrifugal slurry pump that is immersed in the liquid. It is used to convey abrasive, coarse-particle, and high-concentration slurry. It does not require any shaft seal or shaft seal water and can operate normally even under the condition of insufficient suction volume.

The flow-through components of the ZJL type pump are made of wear-resistant metal.

The components of the ZJL type pump that are immersed in the liquid are all equipped with a rubber outer lining, which is suitable for conveying abrasive slurry without sharp edges and corners.

According to the level of the liquid surface in the slurry tank, pump drive shafts or suction pipes of different lengths can be selected.

With a variety of speeds and multiple modification methods, the pump can operate under the optimal working conditions, has a long service life, high operating efficiency, and can meet various harsh conveying conditions.

Working conditions:

It is mainly suitable for conveying corrosive, coarse-particle, and high-concentration slurry. It is widely used in departments such as metallurgy, mining, coal, power, building materials, environmental protection, etc.

Structural installation type:

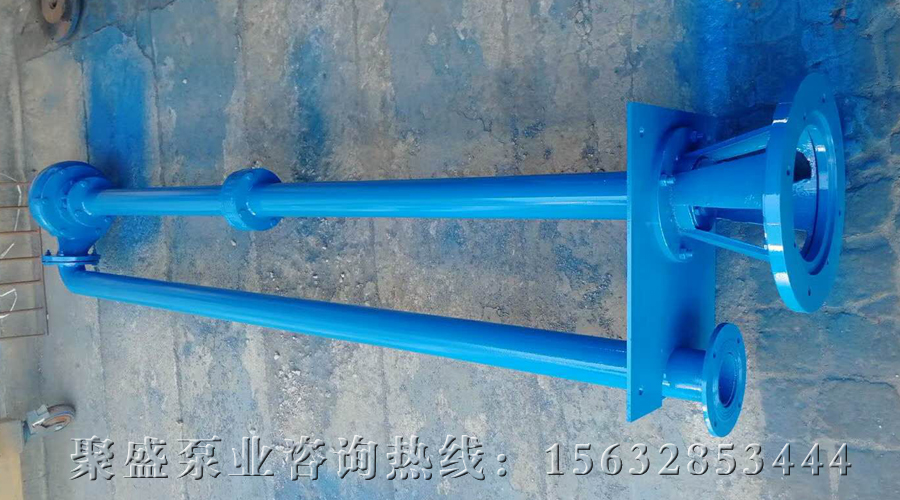

The ZJL type pump is a vertical centrifugal slurry pump. The pump inlet is vertically downward, and the outlet is vertically upward on the other side of the pump. The pump is mainly composed of components such as a lower filter screen, pump body, impeller, shaft, wear plate, support, etc. The upper part of the pump has a bearing support. The pump is installed under the liquid and does not require any shaft seal. The flow-through components are made of wear-resistant materials.

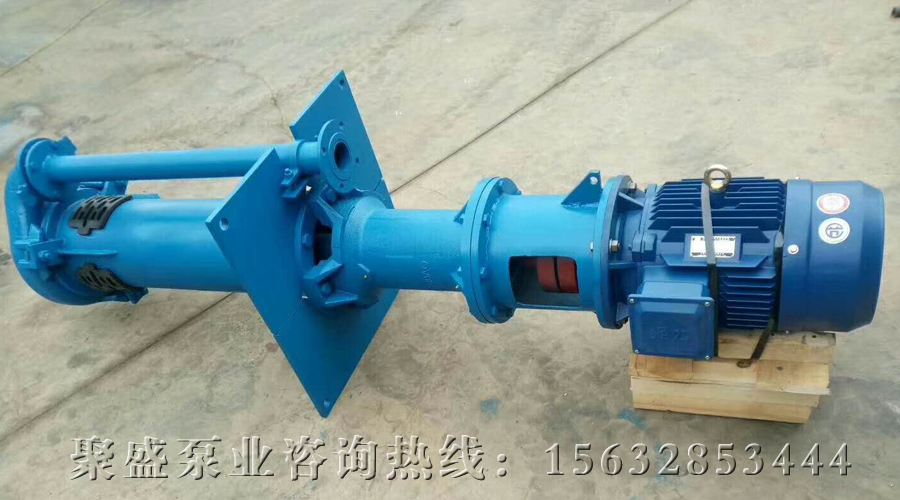

The transmission types of this type of pump are two types, BD and DC, that is, belt drive and direct drive. The depth of immersion in the liquid can be determined according to the actual needs of users within the standard size range.

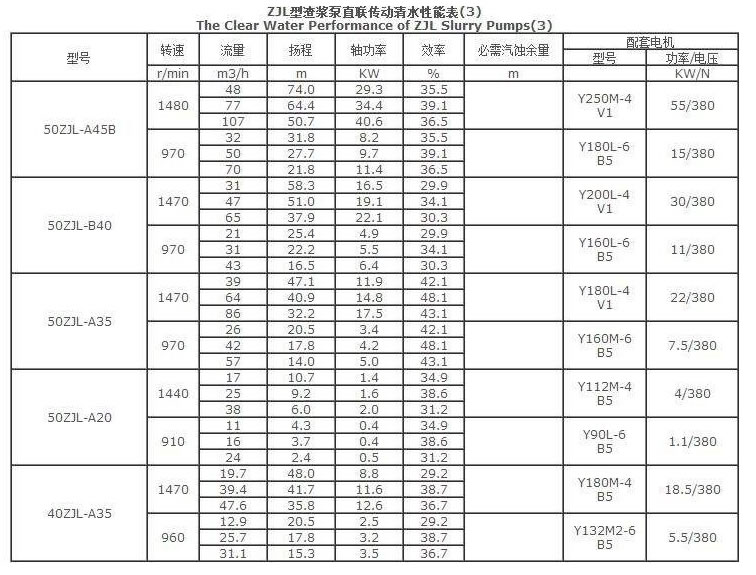

Due to limited space on this page, we are only providing some of the parameters. If you need detailed information, please contact our company's technicians at 182-3296-2233.
